Mitsubishi

SBV16N Series

Features

  • AC drive motor and controller technology for powerful, flexible performance, fully programmable
  • Optional side stabilisers
  • Diagonal standing position
  • Fly-by-wire steering and compact dimensions
  • Tapered fork tips
  • Regenerative braking

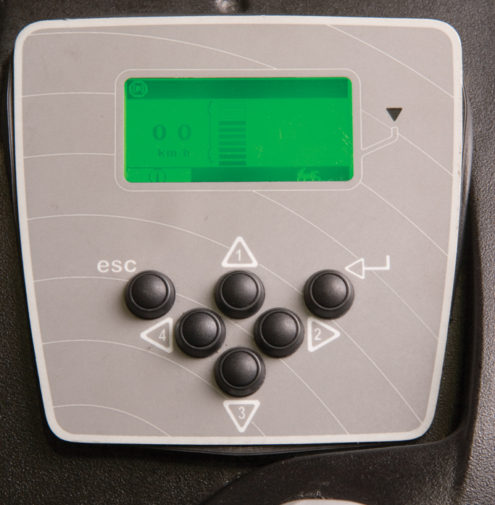

  • Built-in diagnostics and easy service access to all components

Key Specs

Power

AC Power

Range

Platform Stacker

Weight

1.2 - 1.6 Tonnes

Quick Specs

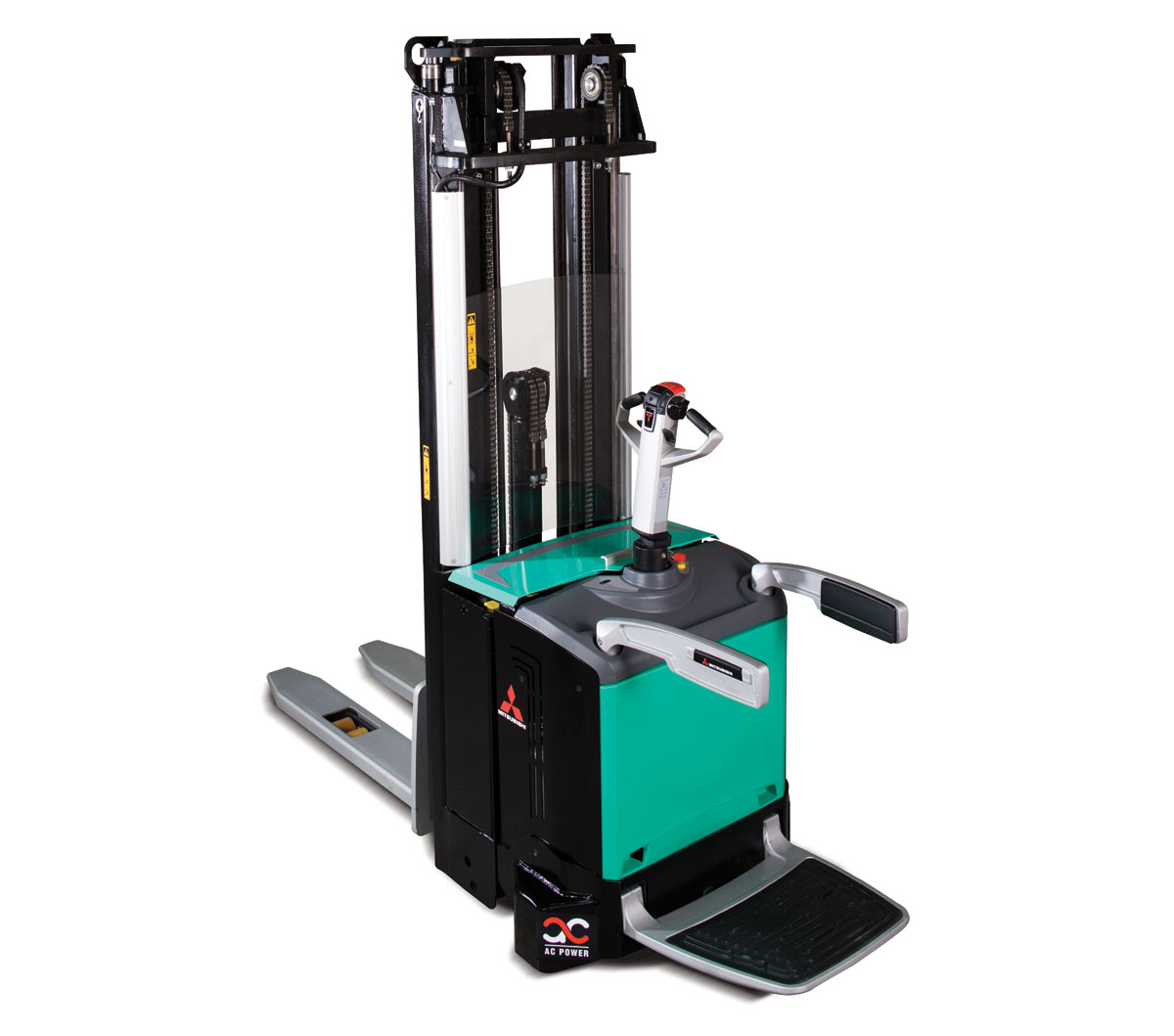

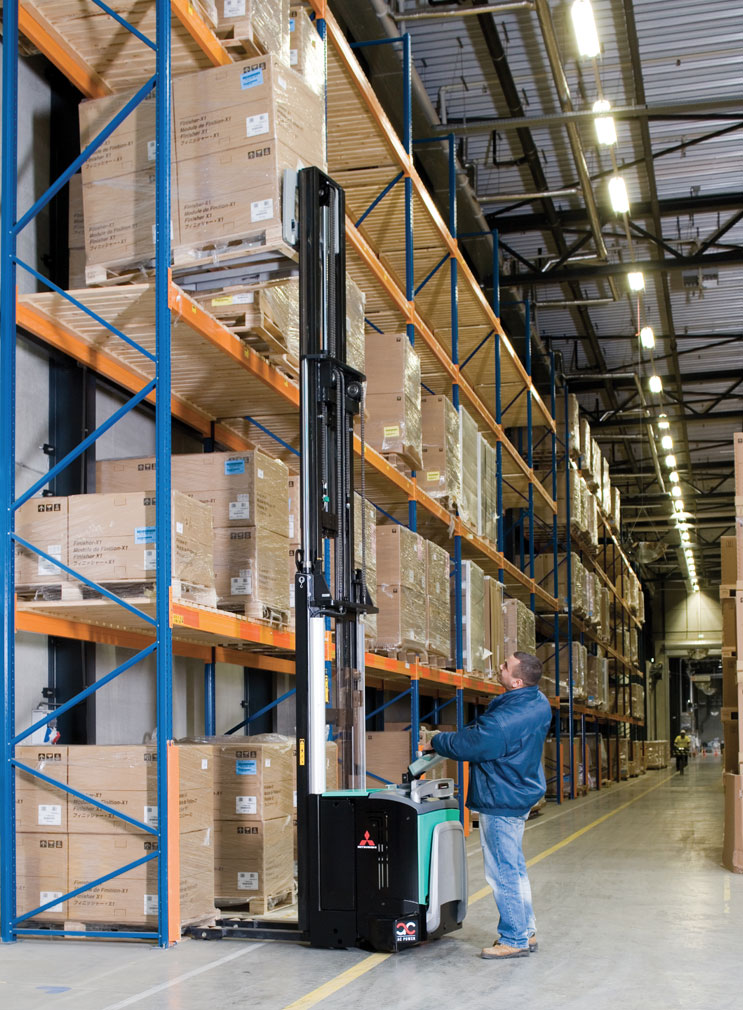

With its stylish, compact shape and superb manoeuvrability, the SBV16N series is designed to fit into the narrowest of aisles and the smallest of work spaces. There it will stack heavy loads, precisely and efficiently, at heights up to 5.4 metres. The series includes initial lift models, with increased ground clearance for operation on ramps, and straddle leg versions, which allow adjustment to suit different pallet widths. In addition, all models allow rapid travel over long distances, offering the operator a choice between pedestrian and ride-on modes.

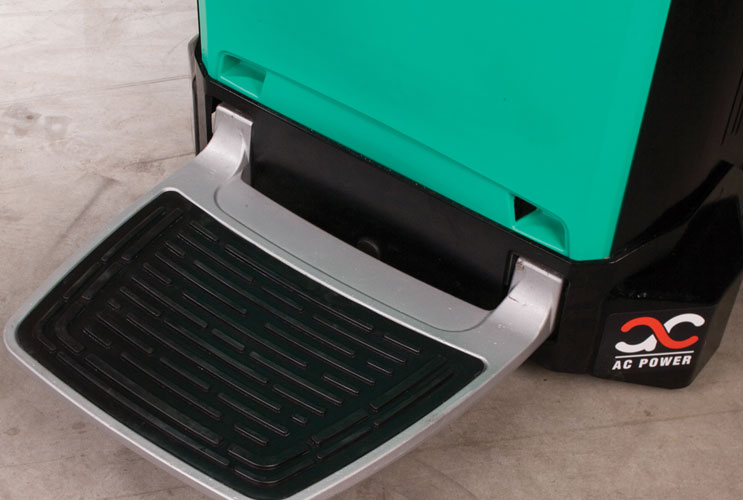

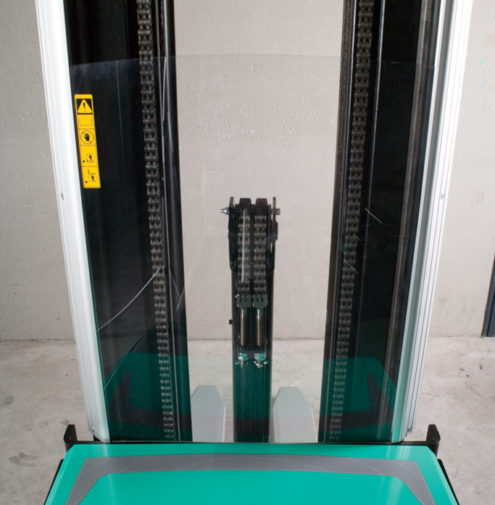

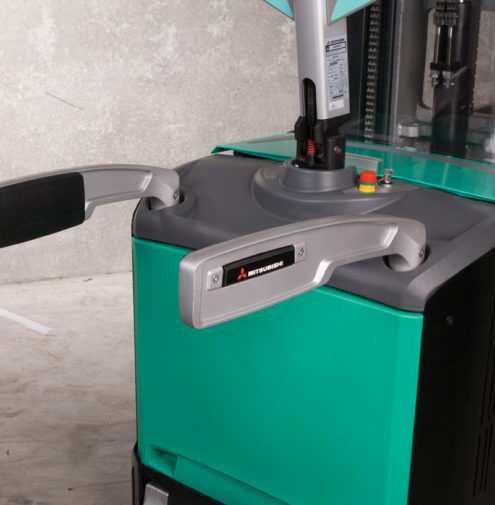

The suspended riding platform and protective sidebars fold away neatly when not being used but lock firmly into place when needed to give the operator stability and safety. Whether riding or walking, the state-of-the-art, simple-to-use tiller arm design protects the operator’s hands and places everything within easy reach for safe, comfortable, controlled operation. AC technology ensures smooth, quiet, powerful performance, and minimises wear of components, while the durability of the chassis and mast guarantees a long working life, whatever the conditions.

Model Load Capacity
SBV16N 1600 kg
SBV16NI 1600 kg
SBV16NS 1600 kg
